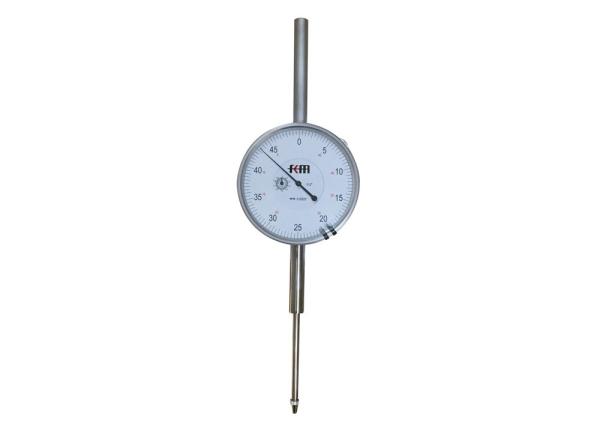

0-2" Large Range Inch Dial Indicator with 0.0005" High Precision Reading
Quick Detail:
1. ANSI standard measurement.
2. Large-diameter dial face for easy reading.
3. Jeweled bearing and shockproof.
4. In-out tolerance marker.
5. Hardened steel stem.
6. Rotational bezel with clamp for easy zero set.
7. Interchangeable hardened contact point.
8. Aluminum or chromate-plated steel available.
9. Flat back or back lug for mounting purposes.
10. Supplied in fitted case.
Description:
This inch dial indicator is high precision model with 0.0005" reading, which is more precision than standard type
inch dial indicators, the 3" larger diameter reading face dial indicator with measuring range 0-2", graduation 0.001",
0-100 dial reading for east reading. With shock proof mechanism is built-in and materialized with highest precision
components of high durability and enlargement mechanism. The stem and spindle are constructed of hardened,
high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth,
precise operations.
When selecting and using inch dial indicator, comprehensive consideration should be made according to actual needs
and usage scenarios to ensure the accuracy and reliability of measurement results.
Specification:
| Order No. |
Range |
Graduation |
Dial Diameter |
| KM-112-30G-20 |
0-2″ |
0.0005″ |
3″ |
Precautions:
1. Before use, confirm whether operation is smooth.
2. Check whether quiescent point of indicator (pointer/short hand) is stable.
3. Check whether contact point and lug back are not loose.
4. When in use, the dial indicator must be fixed on a reliable clamp.
5. When measuring, do not make the stroke of the measuring rod exceed its measuring range.
Applications:
1. To check for consistency and accuracy in the manufacturing process in a quality environment.
2. To initially set up or calibrate a machine, prior to a production run on the workshop floor.
3. By toolmakers (such as mold makers) in the process of manufacturing precision tooling.
4. In metal engineering workshops, where a typical application is the centering of a lathe's workpiece in a four-jaw chuck.
5. In areas other than manufacturing where accurate measurements need to be recorded (e.g., physics).
6. To check for lateral run-out when affixing a new rotor to an automotive disc brake.
FAQ:
1) Who are we?
Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools
in China mainland.
2) What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,
gauge, blocks, level, etc.
3) What are the terms of trade?
We support FOB, CFR, CIF, EXW.
4) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
5) Do we accept customization?
Yes, OEM is available.
6) How about after-sales service?
One year warranty for all kinds of products.
If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.
As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
